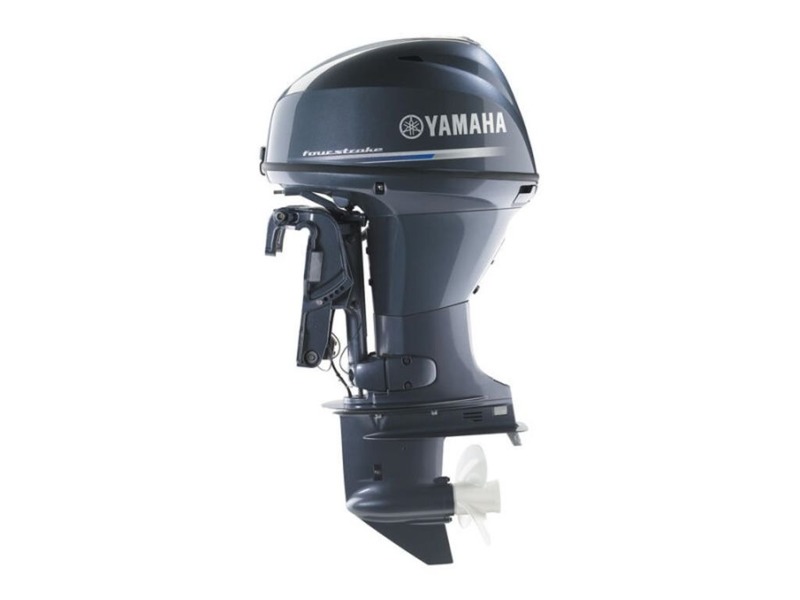

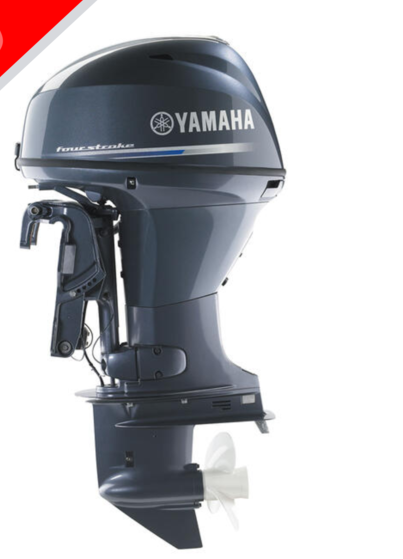

YAMAHA F30LA Four Stroke 30HP Outboard

Yamaha Marine FourStroke F30LA

• F- Four-Stroke
• L- 20″ Shaft Length
• Power Trim & Tilt and Electric Start
• Remote control

Enhanced reliability, exceptionally smooth and quiet operation, outstanding fuel efficiency, maximum performance and convenience. All combine to make the new mid power Yamaha F30 an incredibly powerful and versatile value.

CRAFTED FOR YOUR NEXT WATER ADVENTURE

PRECISE TROLLING CONTROL

Adjust trolling speeds in 50-rpm increments simply by pushing a button on the optional Command Link tachometer or the VTS- switch on the optional multifunction tiller handle.

SINGLE THROTTLE VALVE

Air entering the engine block is routed through a single throttle valve, to ensure the precise amount of air necessary for optimum power and fuel efficiency. It then enters each cylinder through individual long intake tracks, which are “pulse tuned” to provide air at the precise volume and timing for maximum density and power.

Features may include:

RESPONSIVE POWER

• A single overhead camshaft provides precise valve timing for maximum power with minimum weight. This 6-valve, SOHC design efficiently exchanges intake and exhaust gases for responsive power and fuel efficiency.

DEPENDABLE STARTING

• Yamaha’s new F30 features a vapour-reducing fuel return system. Used in conjunction with Yamaha’s electronic multi-point fuel injection, the F30 offers dependable turnkey starting in both hot and cold conditions.

LONG TERM VALUE

• Yamaha improved their legendary Ultimate Corrosion Protection System for the F30. Yamaha’s proprietary alloys, ACP-221 paint process, and freshwater flush device are just the start. Multiple sacrificial anodes in and on the powerhead, mid-section, and lower unit, a special ACP-221 paint process, and a specially painted and treated exhaust system means better long-term protection and maximum value.

ADVANCED TECHNOLOGY

• All F30 models are equipped with an Engine Control Module that interfaces with Yamaha Diagnostic System software. This provides a view of selected past and current running conditions to help technicians provide a complete and accurate diagnosis.

CLEANER FUEL

• All F30A outboards feature a large, on-engine water separating fuel filter with a water sensor. Used in conjunction with Yamaha’s optional boat-mounted 10-Micron Water Separating Fuel Filter, it helps separate water and contaminants from the fuel before they can reach the outboard’s other filters and fuel injectors.

PROTECTION FROM THE ELEMENTS

• The F30 features a proven one-piece cowling with an intake air drain system to easily and efficiently drain away any water that enters the cowling during normal engine operation. Incoming air is routed through a labyrinth of passages that help trap and drain water before it enters the engine’s intake for maximum reliability.

Stock# 5049, 5454
